SKU: DCS-12V-150Ah

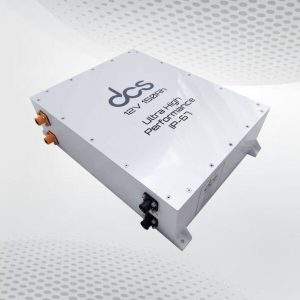

DCS 12V 150Ah IP-67 (Lithium)

FREE DELIVERY AUSTRALIA WIDE

in Stock

$2,399.00 AUD

Share on

Specifications:
Nominal Voltage 12.8V
Nominal Capacity (20Hr) 150Ah
Dimensions Length: 420mm, Width: 325mm, Depth 125mm
Weight 24.0Kgs
Cycling voltage 12.8V ~ 14.6V
Charge voltage 13.7V ~ 14.6V
Float Voltage 13.5V ~ 14.0V
Maximum Charge Current 150A
Recommended Charge Current ≤130A
Maximum Discharge Current ≤250A
BMS (built in) Automatic cell balancing, over discharge/charge
Cell Chemistry DCS 3.2V 7.2Ah cylindrical (LiFePO4)
Cycle Performance 2500 Cycles @ 100% DOD
LCA 1200A
Ingress Protection IP67 (Fully submersible for up to 30mins)
Case Metal with white pearlescent finish
Operating temp Range -25 to +80 degrees C
Terminals Push-lock terminals suitable for 50/35mm cables
Parallel Connections YES
Series Connections NO
Warranty 5 years return to base warranty

DOWNLOAD APP (DCS LFP)

DCS Bluetooth Technology powered by DCS LFP, this APP is only for DCS LFP batteries which is based on BLE 4.0 technology.

This App provides comprehensive monitoring for DCS LFP batteries, including:

  • SOC%
  • Battery pack voltage
  • Amp meter – charge and discharge current
  • Battery Management MOSFET temperature
  • Individual Cell Status with balancing indicators.
  • Connectivity distance up to 10 meters.
