Features

Installation

• Install the Filax in a dry, well-ventilated area.
• The input cables from the generator/mains, the inverter and the output cables to the appliances should be connected.
• If a load of less than 850 Watts is connected, then the wire bridges should be removed.
• The frequency (50Hz or 60Hz) is set with a jumper. 50Hz no jumper placed. 60Hz jumper placed (see photo) If the jumper is not set for the frequency the voltage switching threshold levels will be incorrect.
• Both inputs must be protected against current levels higher than 16 amps.
• The front of the casing is attached using the four supplied screws.
• The Filax is now ready for use.

Models

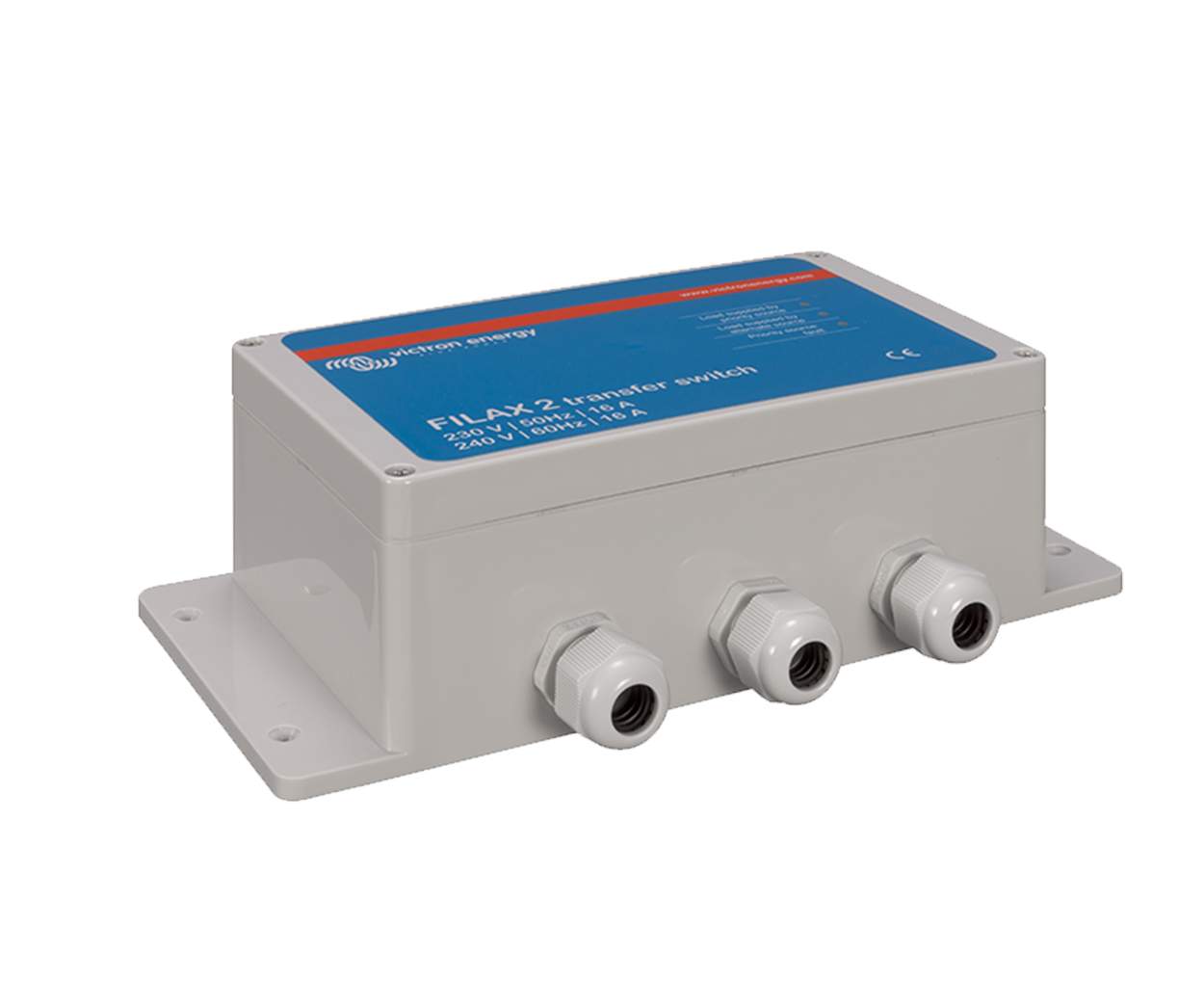

Filax 2 is available in 110V/50Hz-120V/60Hz and 230V/50Hz-240V/60Hz models.
