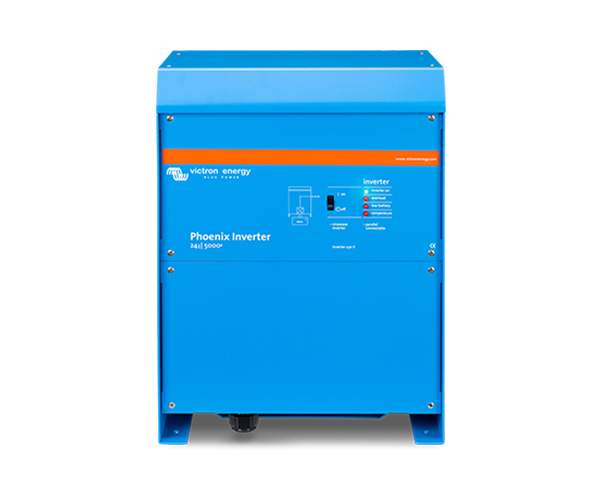

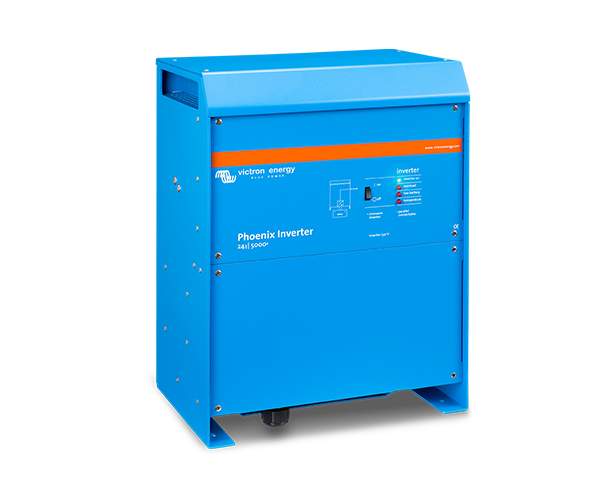

Phoenix Inverter VE.Bus



  • BMV Battery Monitor
  • Developed for professional duty
  • High start-up power
  • Virtually unlimited power
  • 3-Phase or split phase operations

$1,605.33 AUD$2,808.22 AUD

From $118.70 a fortnight withInfo

  • Clear
Share on

BMV Battery Monitor

Phoenix Inverter VE.Bus can be monitored and controlled via BMV Battery Monitor that comes with an advanced microprocessor control systems. It uses complex algorithms to measure the exact state of charge of the battery. It displays the battery voltage, consumed Ah, current, etc.

Computer controlled operation and monitoring

Phoenix inverter smart can be connected to your computer for operating and monitoring. It can help you monitor and configure battery voltage, alarm trip, rest level, AC output voltage, load indicators, cut-off and restart levels, frequency, etc. All you need is MK3-USB VE.Bus to USB interface, connect to a USB port and you are all set to go after configuring the setup.

Reliability and Longevity

Phoenix Inverter VE.Bus is reliable and it will last for years to come. It is protected against;

  • Output short circuit
  • Overload
  • Overheating

Whether battery voltage is too high, battery voltage is too low, temperature is too high, 230 V AC on inverter output, or input voltage ripple is too high, it can handle anything.


The Phoenix Inverter VE.Bus is available in 3000VA for 12V, 24V or 48V and 5000VA for 24V or 48V systems.

Weight N/A
Dimensions N/A

Phoenix Inverter 12/3000, Phoenix Inverter 24/3000, Phoenix Inverter 24/5000, Phoenix Inverter 48/3000, Phoenix Inverter 48/5000
