SKU: DCS-DBS-260Ah
ULTIMATE DCS 12V 260AH DUAL BATTERY SYSTEM (LITHIUM)

FREE DELIVERY AUSTRALIA WIDE

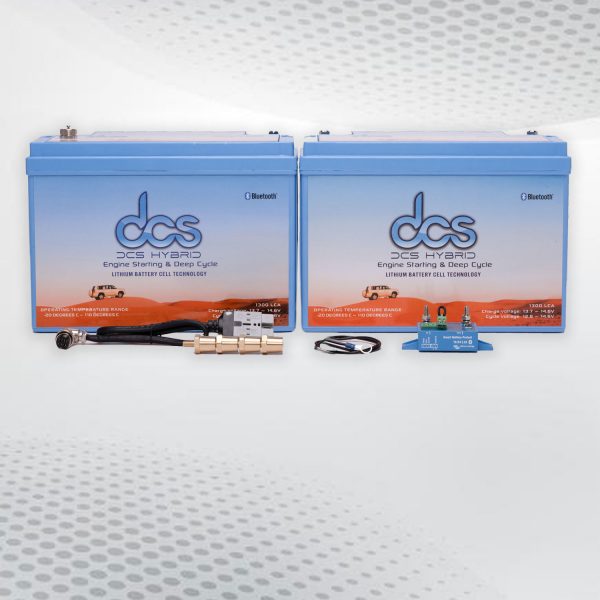

– 2 x DCS 130Ah LFP batteries
– Victron Smart Battery Protect SBP-65A
– Max alternator output 250Amps
– Backed by a 3 year under bonnet replacement warranty.
– Fully programmable via bluetooth
– Tiny power consumption 1.2mA when engaged
– Suitable for Land Cruiser 80, 100, 200 & 300 series
– Integrated 80V/20A MPPT solar regulator
Batch 1, being released this week (20th SEPT). Batch 2 – next availability 17th OCT

$2,999.00 AUD

Share on

DCS Engineering high efficiency 80V/20A MPPT solar regulator especially developed for in battery applications

Our latest upgraded hybrid under bonnet dual battery systems have just been finalised, 30% more storage and now with an integrated 20A MPPT solar regulator.
– 2 x DCS 130Ah LFP batteries (optimized for Engine Bay installs)
– Victron Smart Battery Protect SBP-65A
– Max alternator output 250Amps
– Backed by a 3 year under bonnet replacement warranty
– Fully programmable engine cranking reserve % via Bluetooth
– Tiny power consumption 1.2mA when engaged
– Suitable for Land Cruiser 80, 100, 200 & 300 series and any other vehicles that can accommodate the battery size
– Massive 210Ah usable for accessories with 50Ah reserved for engine starting
– DCS 80V/20A integrated MPPT solar regulator included inside one of the batteries for direct solar input from any solar panel up to 80Voc

With 260Ah of total lithium storage means you have 260Ah x 20% = 50Ah always there for engine cranking. Allowing the upper 80% for deep cycling 210Ah. Why do we use the latest fully programmable Victron Smart Battery Protects? Because they only have a 1.2mA engaged current draw and the isolators will spend 99% of their service life engaged. They have Bluetooth so via the Victron Connect App you can make quick and easy adjustments, override the isolators and check battery voltages. It also means you don’t need to go pulling the car apart to get to it to check it. These isolators should be installed as close to the batteries as possible but inside the cabin they are not suitable for engine bay installations.

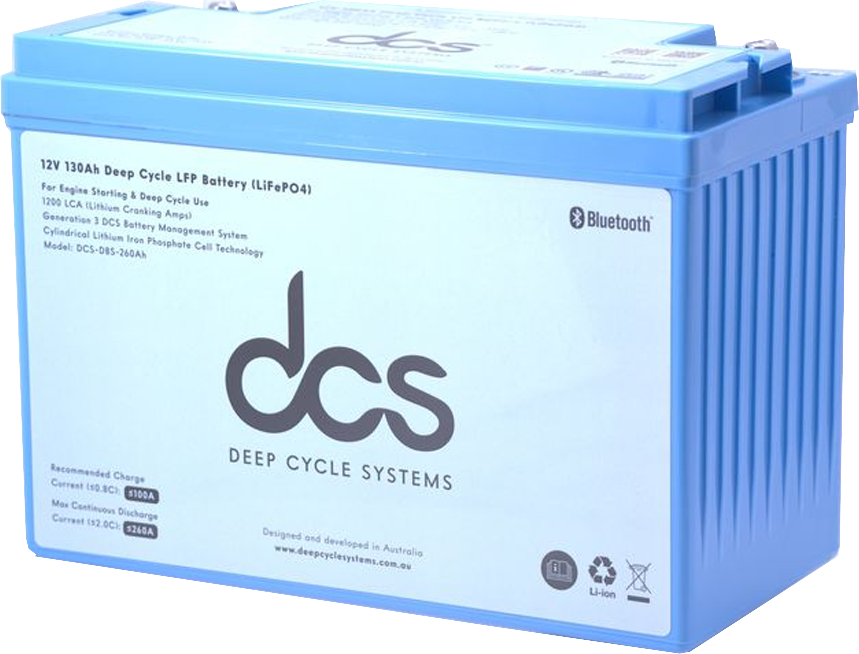

Specifications:
Nominal Voltage 12.8V
Nominal Capacity (1Hr) 130Ah
Dimensions Length: 328mm, Width: 171mm, Height: 215mm
Weight 15.0 Kg
Cycling voltage 12.8~ 14.6V
Charge voltage 13.8 ~ 14.6V
Float Voltage 13.5 ~ 13.7V
Maximum Charge Current 125A
Recommended Charge Current ≤100A
Maximum Discharge Current ≤200A
BMS (built in) Automatic cell balancing, over discharge/charge
Cell Chemistry DCS 3.2V 7.2Ah Cylindrical (LifePO4)
Cycle Performance 2500 Cycles @ 100% DOD
LCA 1000
Engine cranking Max 3000W starter motors
Ingress Protection IP54
Case PP (flame retradent)
Operating temp Range -30 to +80 degrees C
Terminals Top Mount M8 Stainless steel / Copper
Parallel Connections Only Yes
Warranty 3 under bonnet

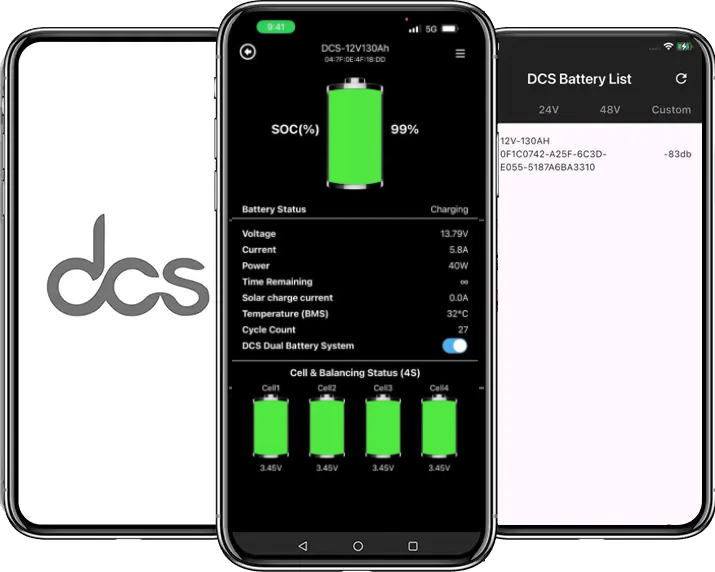

DOWNLOAD APP (DCS LFP)

DCS Bluetooth Technology powered by DCS LFP, this APP is only for DCS LFP batteries which is based on BLE 4.0 technology.

This App provides comprehensive monitoring for DCS LFP batteries, including:

  • SOC%
  • Battery pack voltage
  • Amp meter – charge and discharge current
  • Battery Management MOSFET temperature
  • Individual Cell Status with balancing indicators.
  • Connectivity distance up to 10 meters.

Toyota Land Cruiser 200 Series – DCS 12V 100Ah dual batteries

Dual DCS 12V 100Ah batteries installed in a Toyota Land Cruiser 105

Dual DCS 12V 75Ah batteries install in a Nissan Patrol Y6″

BATTERY SPECIFICATIONS

SMART BP SPECIFICATIONS

Wiring Diagram
